Deploying a Docker Container

​

Prerequisites

• Docker images uploaded to your Docker Hub repository.
• Docker Hub account with appropriate access permissions:

Important: Ensure your Docker Hub credentials have read access to your repositories.

​

Part 1: Setting Up Docker Hub Credentials

​

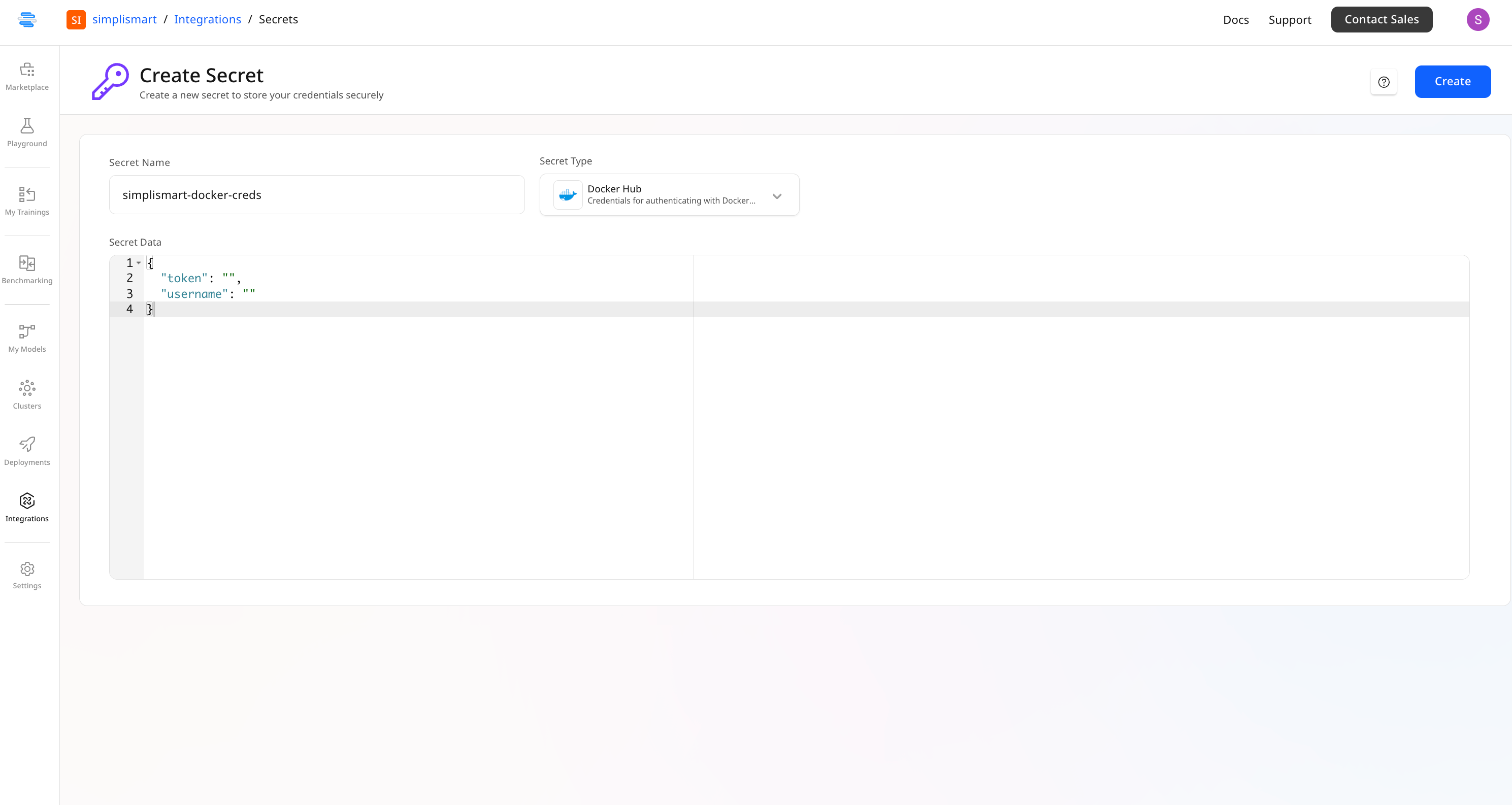

Creating a Secret:

1. Navigate to the Integrations section in your Simplismart dashboard
2. Select Secrets from the menu
3. Click Create Secret and configure:
   • Secret Name: Enter a name for your secret.
   • Secret Type: Select Docker Hub from the dropdown.
   • Credentials: Enter your Docker Hub username and access token.

​

Part 2: Adding Your Docker Image

​

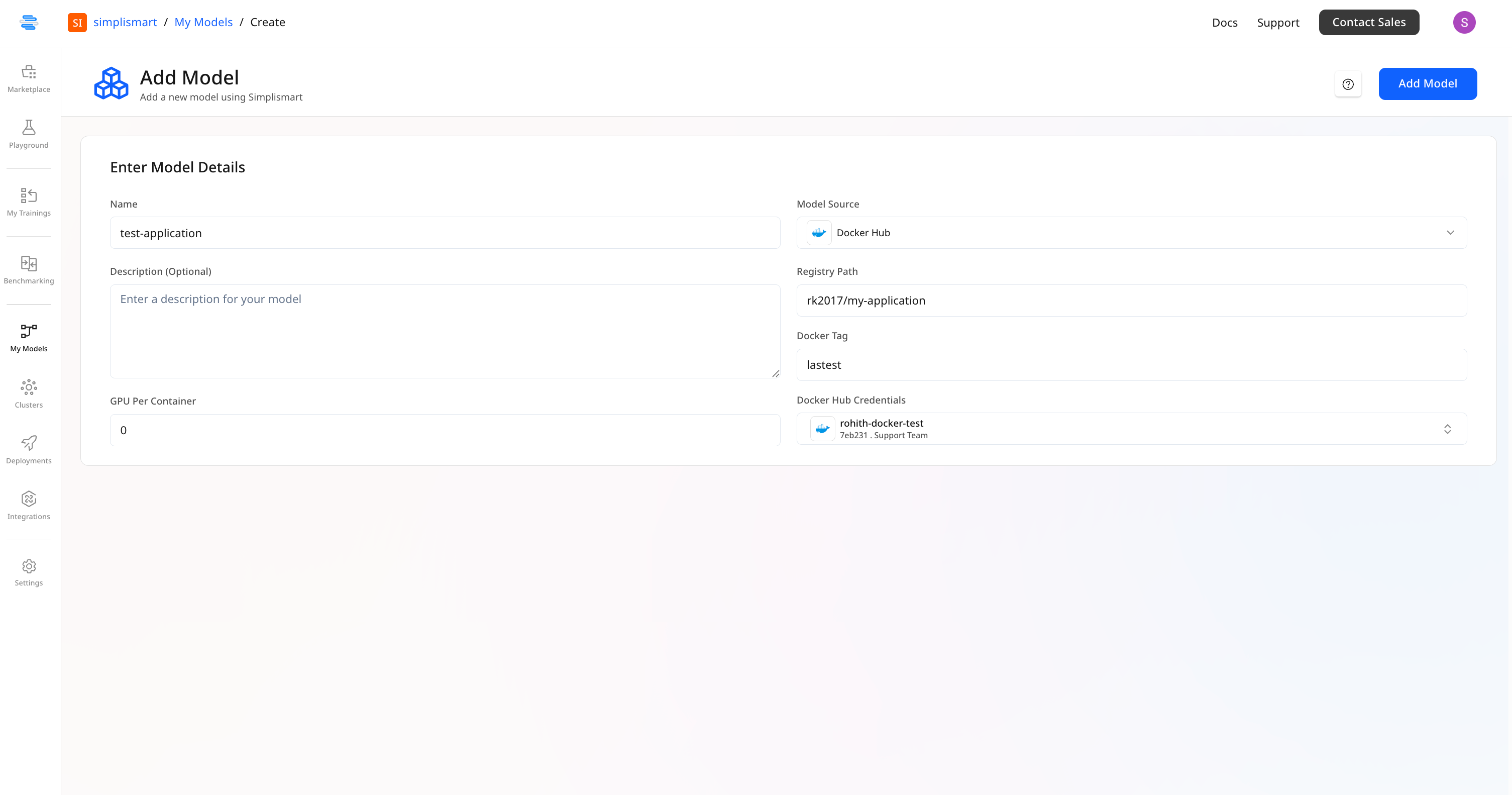

Model Configuration

1. Go to the My Models page
2. Click Add Model and provide:
   • Model Name: Descriptive name for your application
   • Source: Select the model source as DockerHub from the dropdown
   • Registry Path: Your Docker Hub registry path
   • Image Tag: Specify the image version/ tag
   • GPU Configuration: Set to 0 (CPU-only deployment)
   • Credentials: Select the Docker Hub secret created earlier
3. The system will verify your image path and add it to your models list

​

Part 3: Deployment Configuration

​

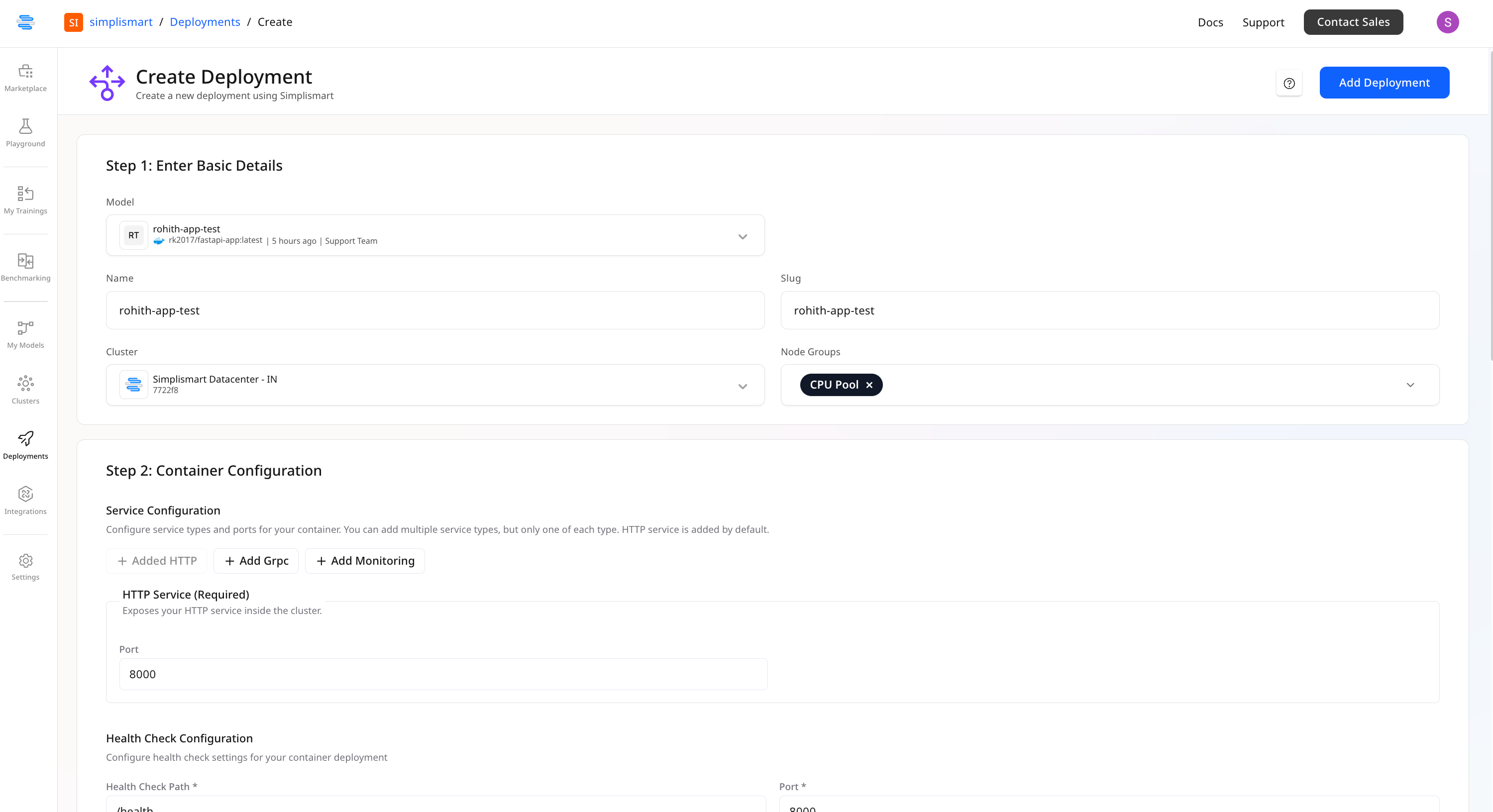

Basic Setup

1. From the My Models section, select the previously added model and click on Deploy Model
2. Configure basic details:
   • Deployment Name: Enter a unique name for this deployment.
   • Cluster: Select Simplismart-Datacenter-IN as the cluster.
   • Node Group: Choose CPU Pool.

​

Container Configuration

​

Service Configuration

• HTTP Service (Required):
  • Ex: 8000 (or your application’s port) (The port on which your server will be running).
  • This exposes your service within the cluster.
• Optional Services:
  • gRPC Service: Enable if your application uses gRPC. (This port can’t be the same as http service port)
    • Monitoring Service: Add for enhanced monitoring capabilities.

​

Health Check Settings

• Health Check Path: /health (endpoint your app responds to)
• Port: 8000 (same as your HTTP service port)
• Initial Delay: 30 seconds (startup time allowance)
• Check Interval: 10 seconds (frequency of health checks)
• Timeout: 5 seconds (maximum response wait time)

​

Environment Variables (Optional)

• Add key-value pairs for configuration
• Use the + button to add multiple variables

​

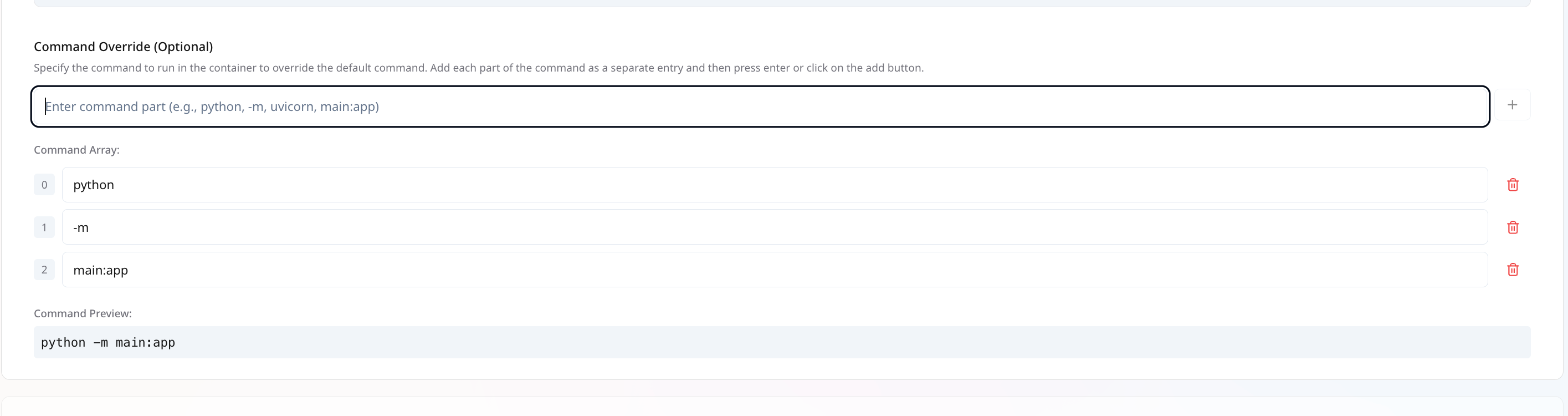

Command Override (Optional)

• Specify the command to run in the container to override the default command. Add each part of the command as a separate entry and then press enter or click on the add button.

​

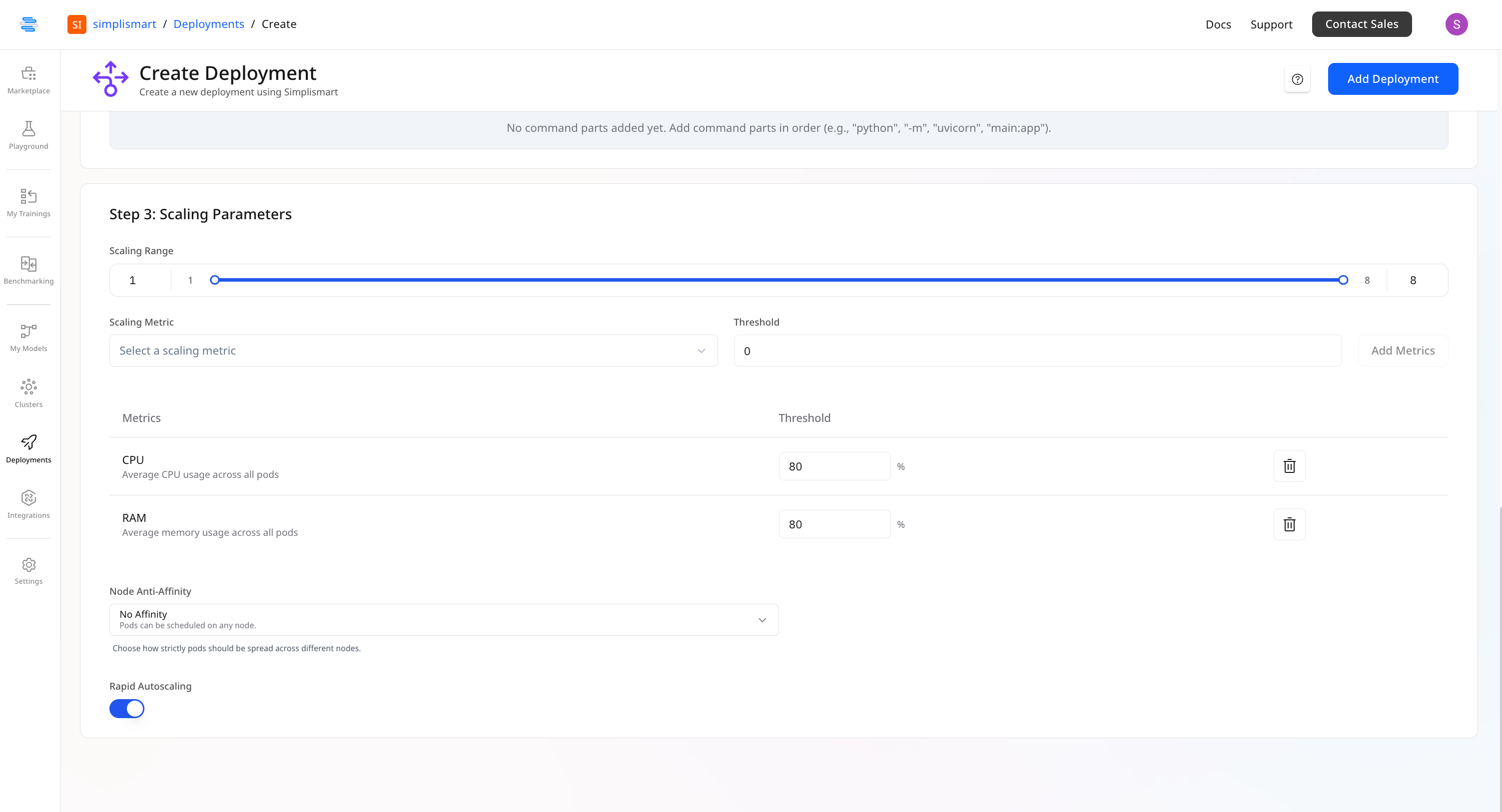

Scaling Parameters

• Range: Set minimum and maximum instances (1-8)
• Scaling Metric: Choose CPU usage as the scaling trigger
• Threshold: Define the CPU percentage that triggers scaling
  (e.g CPU Utilisation 80%)

​

Node Distribution (Node Anti-Affinity)

• No Affinity: Containers deployed anywhere resources are available
• Preferred: System attempts to distribute across different nodes when possible
• Required: Strict enforcement of separate node placement

​

Advanced Options

• Rapid Auto-scaling: Enable for faster scaling response when needed

​

Part 4: Deployment

1. Review all configuration settings
2. Click Add Deployment to initiate the deployment process
3. Monitor the deployment status

​

Part 5: Monitoring and Access

​

Health Status

• Health Status: Healthy indicator on the deployment page
• Deployment URL: Direct access link to your application

​

Troubleshooting

• Verify the health check endpoint is properly implemented in your application
• Ensure Docker image is accessible with the provided credentials
• Confirm port configuration matches your application
